Flask

Building a Thin API Proxy

What We'll Cover

Introduction to Flask

What is Flask?
Typical Application Structure
What it can and can't do

Why Build a Proxy?
Demo

We will not cover:

Python
REST concepts and background
API design principles
Security considerations
Kittens

from flask import Flask, render_template, jsonify, request

app = Flask(__name__)

@app.route('/index')
def index():
    return render_template("index.html")

@app.route('/purchase/<int:product_id>', methods=['POST'])
def purchase(product_id):
    quantity = request.form['quantity']
    # ... make restful API calls with form data
    return jsonify({'txn_id': '42'})

@app.route('/quote', methods=['GET'])
def quote():
    if request.method == 'GET':
        plan = request.args.get('pricing-plan')
        # ... make restful API calls with data
    return jsonify({'quote': '£25'})

if __name__ == 'main':
    app.run()

What is Flask?

Flask is a micro web framework, that can also be used to build a rich API.

Flask simplifies two things:

routing
and dispatching

"... bridges Werkzeug [a WSGI application] to Jinja2 to handle templating."

Simple Example

flask_proxy.py - main application with dispatch rules
flask_proxy_tests.py - unit tests
requirements.txt - list of library dependencies
static - assets
templates - dynamic HTML

This is the basis for any Flask application.

You can further extend this by using libraries (eg. SQLAlchemy, Flask-OAuth) if you need to, but the idea is to use Flask as the foundation for web apps, and build up your application by adding extensions.


    $ tree ~/projects/talent-curator
    |- runserver.py
    |- requirements.txt
    |- talent_curator
        |- __init__.py
        |- apps
            |- core
                |- __init__.py
                |- views.py
                |- models.py
            |- profile
        |- settings
            |- __init__.py
            |- common.py
            |- development.py
            |- production.py
        |- database.py
        |- decorators.py
        |- static
            |- img
            |- css
            |- js
            |- scss
        |- templates
            |- profile
                |- index.html
            |- base.html
            |- index.html


@app.route('/candidates/list')
@login_required
def list():
    return render_template('list.html', candidates={})

def login_required(f):
    @wraps(f)
    def decorated_function(*args, **kwargs):
        if g.user is None:
            return redirect(
                url_for('main_blueprint.login', next=request.url))
        return f(*args, **kwargs)
    return decorated_function


from sqlalchemy.ext.declarative import declarative_base

Base = declarative_base()

class Candidate(Base):
    __tablename__ = 'candidates'

    id = Column(Integer, primary_key=True)
    first_name = Column(String(100))
    last_name = Column(String(100))

    def __init__(self, first_name, last_name=None):
        self.first_name = first_name
        self.last_name = last_name

More Advanced Example

More advanced usage of Flask, using:

extended directory structure and separated modules
decorators and custom routing for API development
extensions for relational modeling and API connectivity (e.g. SQLAlchemy, OAuth)

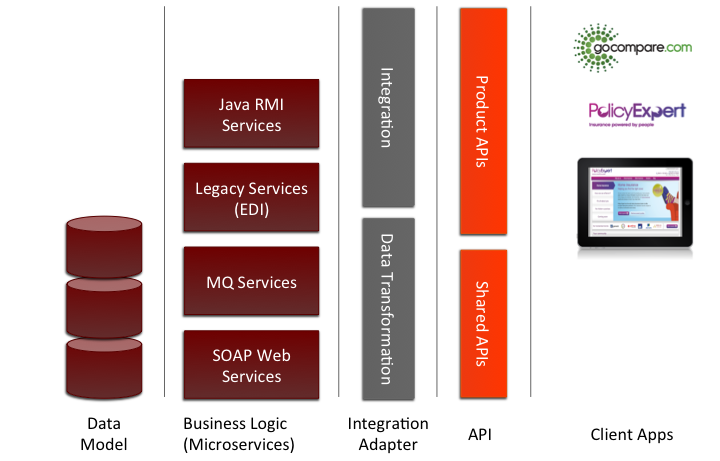

What is an API Proxy?

Thin component, exposing internal services over HTTP endpoints.
Encapsulates complexity of proprietary messaging protocols (RMI, SOAP, XML, JMS).
Allows clients to have one uniform interface for accessing services.
Forward API requests to the appropriate product tier.

Why Build a Proxy?

I. Consolidate messaging protocols.

Adopt a standard messaging format and protocol (e.g. JSON over HTTP).

II. Provide a uniform interface (ie. Façade) to internal services.

Adapt existing services and expose uniform endpoints (e.g. REST).

Our goal is to reduce complexity through separation of components and use layered tiers to allow extensions while limiting the effect of changes.

Demo

Web application connecting to Google API
Authenticate using OAuth 2.0
Retrieve an object from the API and render the response
Demonstrate Flask routing and rendering
Fork on Github: github.com/tantastik/talent-curator
